Product Description

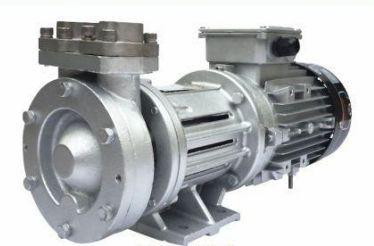

A robust high-temperature pump designed for heavy-duty circulation of hot water (up to 180°C) and thermal oil (up to 350°C). Features a durable construction with optional explosion-proof motor and customizable performance parameters for industrial applications.
Detailed Technical Specifications
|
Parameter |
Unit |
LCY-6091-MK (60Hz) - Options |
|
Speed |
rpm |
2800 |
|
Motor Power Options |
kW |
1.5 / 2.2 / 2.8 / 3.0 |
|
Corresponding Flow |
L/min |
80 / 80 / 90 / 100 |
|
Corresponding Max. Head |
m |
60 / 80 / 90 / 100 |
|
Corresponding Max. Lift |
m |
80 / 90 / 110 / 160 |
|
Connection Size |
inch |
3/4 (SAE 1 or 1¼ custom) |
|
Max. Temp. |
°C |
Water: 180 | Oil: 350 |
Mechanical Data & Features
* Seal/Bearing: Cartridge mechanical seal | Grease-lubricated ball bearings.
* Options: ATEX/IECEx explosion-proof, thermal jackets, temperature sensors, VFD compatibility.
