Product Description

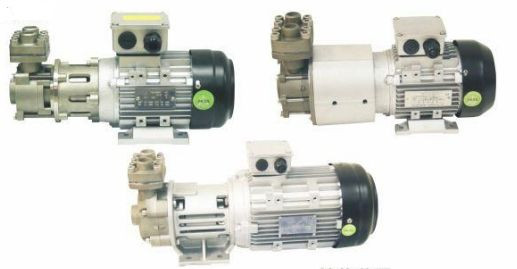

The MAP Series is a sealless magnetic drive pump designed for high-temperature circulation systems and industrial boosting. Capable of handling fluids up to 350°C, it is suitable for heat transfer oil and clean liquids without solids or fibers. Features a leak-free magnetic coupling for safe and reliable operation in demanding thermal applications.
Detailed Technical Specifications
|
Parameter |
Unit |
MAP-500SUS |
MAP-1100SUS |
MAP-3000SUS |
MAP-4000SUS |
MAP-4200SUS |
|
Connection Diameter |
inch |
1/2 |
1 |
1 |
1 |
1¼ |
|
Motor Power |
kW |
0.5 |
1.1 |
3 |
4 |
4 |
|
Speed |
rpm |
2760 |
2760 |
2760 |
2760 |
2760 |
|
Maximum Head |
m |
38 |
57 |
78 |
82 |
78 |
|
Maximum Flow Rate |
L/min |
30 |
53 |
128 |
148 |
180 |
|
Pump Weight |
kg |
9 |
18.5 |
35 |
45 |
45 |
Operating Conditions & Materials
* Ambient Temperature: Maximum +40°C
* Fluid Temperature: General Liquids: -5°C to +180°C | Heat Transfer Oils: +50°C to +350°C
* Fluid Type: Clean liquids without solid particles or fibers.
* Construction: Pump Housing: Stainless Steel (SUS304/SUS316) | Magnets: Samarium Cobalt/Neodymium | Isolation Can: Ceramic/Stainless Steel.
