Product Description

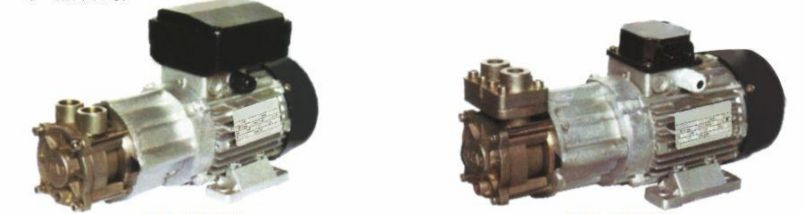

A compact high-temperature pump for hot water and thermal oil up to 350°C. Constructed with stainless steel (SS304) and ceramic shaft, it is suitable for industrial heating and process systems. Customizable parameters and optional explosion-proof motor available.
Detailed Technical Specifications
|
Parameter |
Unit |
2251-MK (50Hz) |
|
Speed |
rpm |
2800 |
|
Flow Rate |
L/min |
63 |
|
Motor Power Options |
kW |
0.25 / 0.37 / 0.5 |
|
Corresponding Max. Head |
m |
20 / 35 / 45 |
|
Max. Lift |
m |
1.8 / 1.8 / 2.1 |
|
Connection Size |
inch |
1/2 or SAE 1/2 |
|
Max. Temp. |
°C |
Water: 180 | Oil: 350 |
|
Min. Temp. |
°C |
-100 |
Construction & Customization
* Materials: Liquid End: SS304 | Impeller: Stainless Steel, Copper | Shaft: Ceramic with PEEK.
* Options: 50/60Hz motors, explosion-proof (Ex) motors, custom seals and connections.
