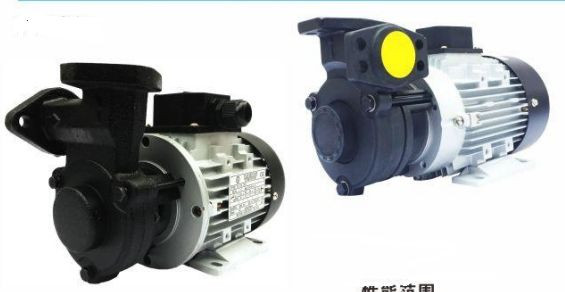

WDRS-15 High-Temperature Circulation Pump Series
Product Description
A high-temperature circulation pump for industrial boosting and thermal oil systems. Suitable for clean liquids and hot water up to 160°C. Compact and robust, it is ideal for continuous operation in heating and process circuits.
Detailed Technical Specifications
|
Parameter |
Unit |
WDRS-15A |
WDRS-15B |
WDRS-15C |
|
Connection Diameter |
inch |
3/4 |
3/4 |
1 |
|
Motor Power |
kW |
0.37/0.5 |
0.75/1 |
1.5/2 |
|
Speed |
rpm |
2760 |
2760 |
2760 |
|
Maximum Head |
m |
28 |
38 |
45 |
|
Maximum Flow Rate |
L/min |
42 |
56 |
110 |
|
Pump Weight |
kg |
9 |
12.5 |
18 |
Operating Conditions & Seals
* Ambient Temperature: Maximum +40°C
* Fluid Temperature: General Liquids: -5°C to +50°C | Hot Water: +50°C to +160°C | Heat Transfer Oils: +50°C to +180°C.
* Mechanical Seal: Standard: Carbon/Ceramic | High-Temp: Tungsten Carbide/Silicon Carbide.
