Product Description

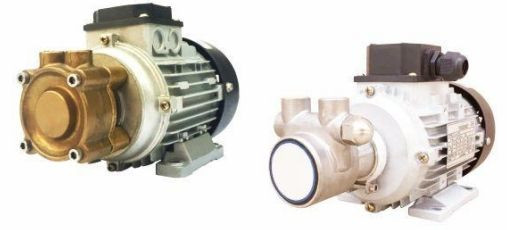

A high-pressure pump series for industrial boosting and circulation systems. Handles clean liquids up to 90°C with reliable mechanical seals. Suitable for water, oil, and mild corrosive fluids. Offers stable performance in continuous duty applications.
Detailed Technical Specifications
|
Parameter |
Unit |
WDRS-10A |
WDRS-11A |
WDRS-12A |
WDRS-13A |
|
Motor Power |
kW |
0.12 |
0.25 |
0.18 |
0.18 |
|
Speed |
rpm |
2760 |
1400 |
1400 |
1400 |
|
Maximum Head |
m |
50 |
200 |
150 |
160 |
|
Maximum Flow Rate |
L/min |
6 |
2.2 |
1.8 |
1.9 |
|
Pump Weight |
kg |
4 |
7.5 |
6 |
6 |
Mechanical Seal Specifications & Fluid Compatibility
* Seal Pressure: 1.0 MPa (10 bar)
* Seal Temperature: -20°C to +250°C
* Seal Faces: Stationary: Ceramic, SiC, WC | Rotating: Graphite, SiC, WC, Chrome Steel.
* Compatible Fluids: Water, oils, synthetic fluids, mild acidic/alkaline solutions (pH 4-10).
